Shaped refractories ·
High-alumina · Fireclay · Special.

Our core product line, made at our plant in Zibo. High-alumina and fireclay brick, plus special brick and shapes made to your drawing. Offered grades and documents are confirmed for the specific inquiry.

Product Matrix

Three product families,
for the main furnace linings.

Made at our plant in Zibo. Sizes and shapes can follow your drawing; batch quality and delivery are handled by us.

Series 1 · High-alumina

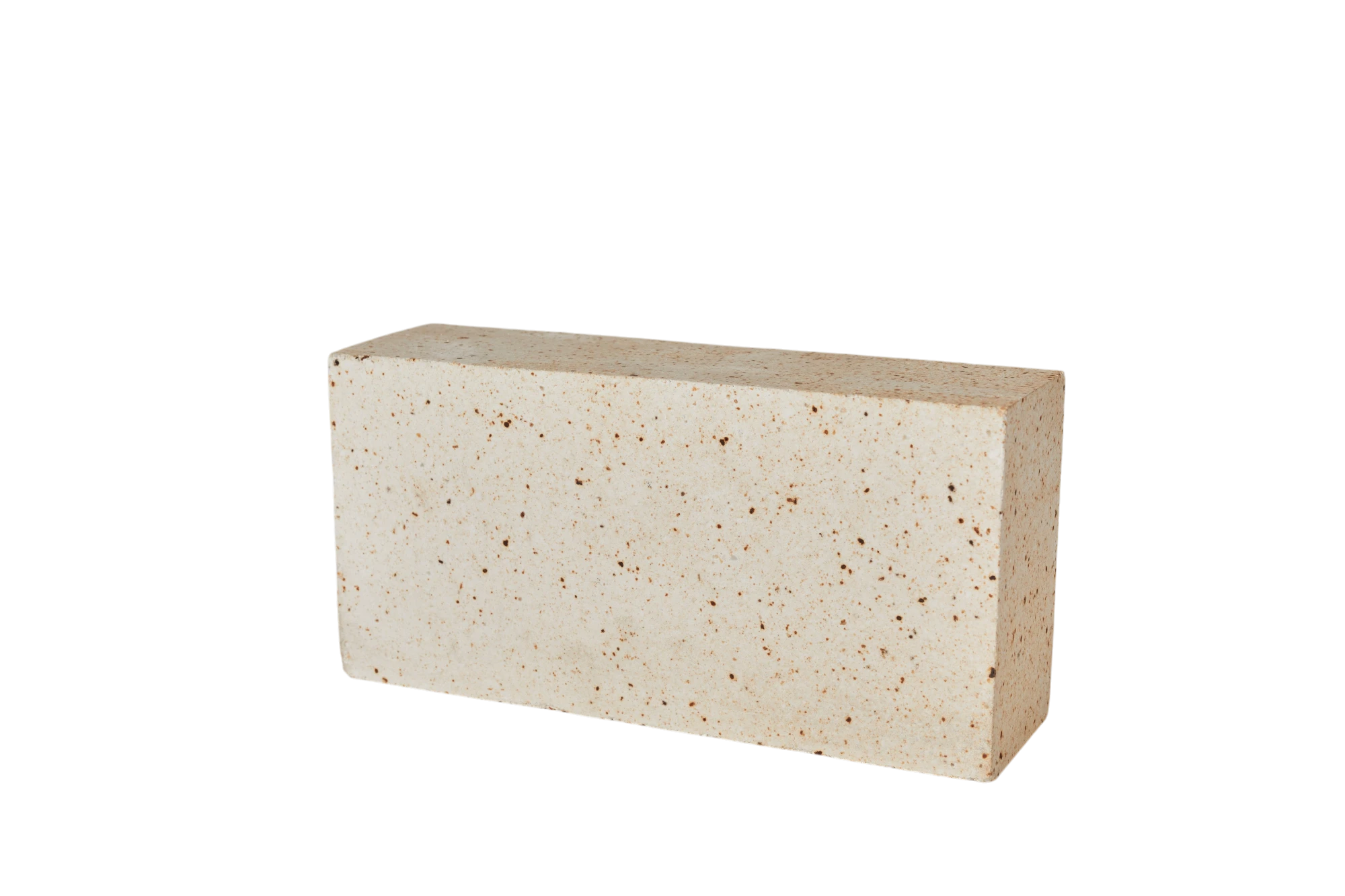

High-alumina brick

Grade selection starts with the actual furnace zone, duty and offered product data—not a generic alumina percentage.

GradeConfirm offered datasheet
Hot loadAgree method and conditions
ShapeTo approved drawing
DocumentsConfirm by project
View specifications
Series 2 · Fireclay

Fireclay brick

SK-32, SK-34 and SK-36. Good thermal shock resistance at a lower cost — for low- and medium-temperature working linings and backup layers.

GradesSK-32 – SK-36
Al₂O₃30% – 42%+
Refractoriness1710 – 1790 °C
StandardGB/T 2988
View specifications
Series 3 · Special & shapes

Special brick / shapes / precast

Non-standard sizes and special positions, made to drawing: kiln doors, burner blocks, peep holes, arch pieces, and precast pieces delivered whole.

GradeTo your drawing
SizeNon-standard
DeliveryLoose / precast
ProcessingTo drawing
Send a drawing
Technical Specifications

Define the offered grade,
then check its data.

Request the current manufacturer's datasheet for the exact offered brick. Any required values, methods and reports must be agreed for the project.

Series 1

High-alumina brick

Review itemConfirm for the offered grade
Composition and physical dataDeclared values, units and methods
Hot-load behaviourMethod, conditions and reported result
Size and shapeApproved drawing and tolerance
DocumentationAvailability, sampling basis and timing

No generic grade value or batch document is guaranteed by this table. Confirm the actual product and contract scope.

When two datasheets do not use the same basis

Comparison guidance updated: November 3, 2026.

Before ranking brick offers, put the offered grade, declared value, unit, test method and reported conditions on the same comparison line. A shared grade label or a larger number alone is not a project acceptance decision.

What the buyer findsComparison statusNext step before acceptance
The value, unit, method and relevant conditions are stated on the agreed basisReady for project-specific comparisonCompare the declared result with the purchaser's specified requirement; separately confirm the report and sampling scope required for the order.
A method or condition is missing, or the offers use different basesClarification requiredRequest the missing method, conditions and applicable report basis. Do not fill a blank with a catalogue assumption or rank the figures as if they were equivalent.
The supplier proposes a different grade, shape or evidence packageAlternative, not an accepted matchKeep the original requirement visible, list the proposed deviation separately, and obtain the purchaser's written acceptance before treating the alternative as the order basis.

Use the drawing or specification revision and offered-grade identification on the comparison sheet. A datasheet comparison is not a substitute for checking the actual furnace zone, installation constraints or agreed batch acceptance evidence. See the brick RFQ checklist for preparing the enquiry, or send the specification for review.

Series 2

Fireclay brick

GradeAl₂O₃ (%)Refractoriness (°C)RUL T₀.₆ (°C)Bulk density (g/cm³)CCS (MPa)Typical use
SK-32≥ 30≥ 1710≥ 12502.00≥ 20Low-temperature linings, flues
SK-34≥ 36≥ 1750≥ 13002.10≥ 25Medium-temperature linings, backup layers
SK-36≥ 42≥ 1790≥ 14002.20≥ 35Hot blast stoves, reheating furnaces

Tested per GB/T 2988.

Series 3

Special brick / shapes / precast

TypeMaterialProcessingTypical positionDelivery
Kiln door / burner blockHigh-alumina shapeMachined to drawingFurnace doors, burner portsLoose / assembled
Peep hole blockHigh-alumina shapeMachined to drawingObservation openingsLoose
Arch / wedge brickHigh-alumina / fireclayPressed in mouldsRoofs, circular structuresLoose / numbered
Precast shapeCast and firedCast whole to drawingLarge special piecesDelivered whole

Send a CAD file or a dimensioned sketch. The quotation states whether we can make it, any mould cost, the minimum per shape, and the lead time.

In-House Manufacturing

Not traded.
Made by us.

Shaped refractories are made at our plant in Zibo, from raw material to packed pallet. Batch quality, production schedule and delivery are under our direct control.

01

Raw materials & forming

Bauxite, clay and binders batched by grade. Pressed to shape, with density and dimensional tolerance recorded.

02

Firing & testing

Firing and test scope follow the offered product and agreed quality plan. Ask for the applicable methods and report coverage.

03

Packing & traceability

Packing, grade identification, lot traceability and accompanying documents are specified for the order.

Application Review

Start with the zone,
then verify the proposed brick.

Potential applications include industrial heating, steel, cement and other high-temperature equipment. A furnace name alone does not establish the correct grade. Send the actual zone conditions and drawing for a product-specific review.

Thermal

Temperature and cycling

Separate measured operating data from design assumptions and include upset conditions.

Exposure

Chemical and wear duty

Record slag, alkali, ash, abrasion and load where applicable.

Installation

Geometry and documents

Confirm shape, size, jointing and the required acceptance evidence.

Your Full List

Shaped refractories are our core,
your full list answered line by line.

We make shaped refractories ourselves. Insulating firebrick, ceramic fiber and other items come from long-term partner producers in Zibo. Items we can supply are quoted line by line, and confirmed items are consolidated for shipment from Qingdao.

Have a specification?
Send it for review.

Tell us the grade, size, quantity, destination and mandatory documents, or attach your drawing. We will confirm whether a quotation can be supported.
